Products > Control Components > STANDARD TOUCHSCREEN
CONTROL COMPONENTS

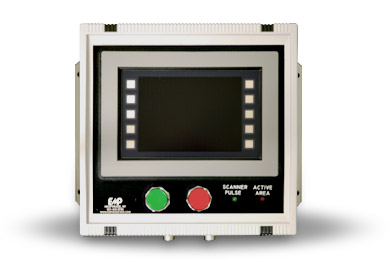

Standard Touchscreen

Our Series 1100 Servo System comes standard with this 6" Color Touchscreen

Photos Next Photo

OVERVIEW FEATURES COMPONENTS DOWNLOADS

Our user-friendly 6" Color Touchscreen simplifies your operating and maintenance procedure, allowing for quicker setup and changeover times and less confusion on the plant floor.

  • WVGA 800 × 480 pixels, LED lighted, color graphic TFT-LCD display measuring 7" (177 mm) diagonal.
  • 4-Wire resistive touch screen
  • USB 2.0 full-speed port for USB memory stick
  • Two serial ports. EIA-232C and EIA-232C/422/485 Software-selectable multiprotocol
  • Ethernet 10/100Base-T interface. Supports TCP/IP, Modbus™ and other protocols.
  • Industrially hardened to operate in many environmental conditions and meets NEMA-4X and IP66 sealing specifications for hose-down, icing and salt spray when mounted properly. CE certified. UL Listed.



  • Powerful Qlarity® 2 object-based programming for easy application development
  • -20 to 70 °C operating temperature; consumes 7 W @ 24 VDC
  • Programmable speaker and .wav audio decoder
  • Real-time clock

 It is particularly replica watches uk worth mentioning that the cherry blossoms are hollowed out.





 This product does not have any components. It comes programmed and ready to use.

QTERM-G72
Download File - 407.59 KB
