CONTROL COMPONENTS

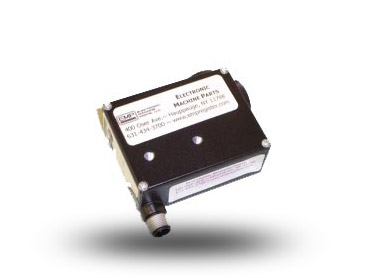

TLU Scanner

The TLU Scanner comes standard on EMP Servo Systems

Photos Next Photo

OVERVIEW FEATURES COMPONENTS DOWNLOADS

Overview of EMP's TLU Scanner

General Data Value
Scanner Type Contrast
Output Type NPN(default)/PNP
Emitter Type Red & green
Enclosure IP67
Rated Supply Frequency DC
Utilization Category DC 13
Rated Operational Voltage 10-30 DC V
Connection Quick Disconnect
Light Spot Dimensions 1.5 x 5 at 9mm
Polarity Reversal Resistant Yes

One main feature of the TLU Scanner is a Quick Disconnect connection type, allowing for simple, quick replacement and exchanging of parts.

The TLU Scanner has no components.

TLU 15 REV B SCANNER DATA & SETUP PROCEDURE
Download File - 776.37 KB
TLU Installation Data
Download File - 270.03 KB
TLU Scanner Set-up Procedure
Download File - 225.94 KB
TLU-15 Scanner Data - Rev B
Download File - 391.55 KB
